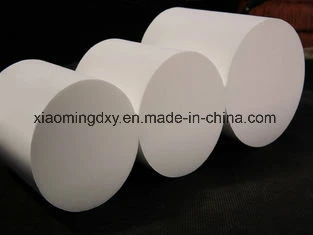

Ceramic Honeycomb Substrate
Honeycomb ceramic is new developed ceramic part. Because of it's features of corrosion resistances, large specific surface area, small heat resistance, good thermal conductivity and excellent thermal-shock resistance, fast heat exchanging and energy saving. Honeycomb ceramic substrate is made of cordierite enjoys the merits of very low thermal expansion coefficient, high specific surface area, low pressure drop, rapid light-off and unique structures which are perfect for car catalytic converter. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals. The shape will be round, oval or racetrack with 100 cpsi, 300 cpsi, 400 cpsi or 600 cpsi cells that provide high surface for the precious metal catalysts that convert noxious emission into water vapor, carbon dioxide and so on.

Honeycomb Ceramic Catalyst Carrier Ceramic Honeycomb Catalyst Substrate

Honeycomb ceramic substrate have a very competive substrates.
*We can produce 100CPSI, 200CPSI, 400CPSI, 600CPSI can be in the shape of round, racetrack and ovral.
*Specification can be customerlized, as the the customers requirement.
*Can be coated with the catalyst and the noble metal as the customers emission standards: Euro II, EuroIII and EuroIV and EPA standard and the Cariforlia standards.

Advantages:
*High specific surface area: Ensure exhaust gas could contact weigh catalyst enough
*Stable water absorption: Guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it is no waste for too thick coating
*Warm up characters: Ask exhaust resistance of substrate to engine low, so that it will not affect the performance of engine
*Low exhaust resistance: Ask exhaust resistance of substrate to engine low, so that it will not affect the performance of engine
*High intensity: Substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed
*Perfect assembly: Substrates are parts of exhaust; Perfect appearance and exact dimension could ensure assembly perfect

ItemsParameters
Cordierite crystal phase≥ 90%
Coefficient of Thermal Expansion(20-800 ° C)≤ 1.2 × 10-6/ ° C
Thermal Stability(20-650 ° C)3 times
Soften Temperature≥ 1400 ° C
Water Absorption23-25%
Bulk Density0.40-0.50Kg/L
Tolerance of outside dimensions± 1%
Compression StrengthLengthways≥ 15MPa
Horizontal≥ 3MPa
Wall thickness100 CPSI0.43 mm
200 CPSI0.32 mm
300 CPSI0.30 mm
400 CPSI0.18 mm
600 CPSI0.15 mm

Size (mm)Size (mm)Size (mm)Size (mm)
ø 76.2x50ø 93x85ø 103.0x130ø 118.4x118.4
ø 76.2x101.6ø 93x88.3ø 105.7x130ø 118.4x120
ø 80x50ø 93x100ø 105.7x147.5ø 118.4x127
ø 80x60ø 93x110ø 105.7x152.4ø 118.4x140
ø 80x95ø 93x101.6ø 106.1x152.4ø 118.4x152.4
ø 83x60ø 93x118ø 107.1x80ø 132.1x100
ø 83x80ø 93x130ø 107.1x130ø 143.76x127
ø 83x85ø 93x152.4ø 107.1x100.4ø 143.8x75
ø 83x100ø 93x170ø 110x80ø 143.8x152.4
ø 83x115ø 97x88.9ø 110x130ø 143.8x177.8
ø 83x125ø 97x114.3ø 110x165ø 150x66
ø 87x60ø 97x170ø 118.4x50.8ø 150x100
ø 88x85ø 101.6x50ø 118.4x55ø 150x150
ø 88x170ø 101.6x76.2ø 118.4x60ø 170x50
ø 92x90ø 101.6x90ø 118.4x75ø 170x70
ø 93x60ø 101.6x100ø 118.4x95ø 170x100
ø 93x75ø 101.6x123.3ø 118.4x100ø 180x60
ø 93x76ø 101.6x152.4ø 118.4x114.3ø 180x270
